Gold Ball Mill Grinding Ore Grinder Gold Mining Equipment Ball Mill for Limestone Basalt
Specifications of 1200*2400 Ball Milling Machine manufacturer
coal industry mostly chosen lead oxide ball mill
1.for grinding operation of mineral
2.has many steel balls
3.wet or dry type
Operating Principle for ball milling machine

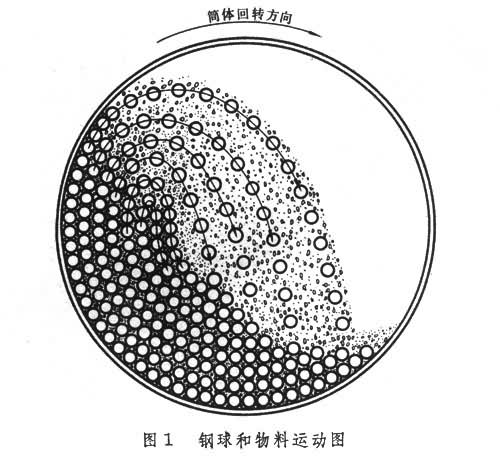

ball milling machine consists of a horizontal cylindrical shell, provided with renewable wearing liners and grinding medium—steel balls. In the low-speed rotating shell, steel balls cling to the liner under the influence of inertia and friction. Then they will be taken to a certain height and thrown down as a result of the gravity and centrifugal force. In this process, the materials continuously dropped from one end of the cylinder will be smashed by the balls. In addition, both the balls and materials will be rolling and sliding irregularly together.
Features for ball milling machine
1. High efficiency and energy- saving
2. Widely application
3. Easy and safe operation
4. Stable performance
5. Even product size
Main parameters of 1200*2400 Ball Milling Machine manufacturer
| Model | Cylinder rotary speed (r/min) | Loading ball weight (t) | Input size (mm) | Discharge size (mm) | Capacity (t/h) | Motor power (kw) | Weight (t) |
| Ø900×1800 | 39 | 1.5 | ≤20 | 0.075-0.89 | 0.8-2 | 18.5 | 4.6 |
| Ø1200×3000 | 36 | 3.5 | ≤25 | 0.074-0.4 | 1.6-5 | 37 | 12.8 |
| Ø1200×4500 | 32 | 5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
| Ø1500×3000 | 27 | 7.5 | ≤25 | 0.074-0.4 | 2-5 | 75 | 15.6 |
| Ø1500×5700 | 28 | 12 | ≤25 | 0.074-0.4 | 3.5-6 | 130 | 24.7 |
| Ø1830×3000 | 25 | 11 | ≤25 | 0.074-0.4 | 4-10 | 130 | 28 |
| Ø1830×6400 | 24 | 21 | ≤25 | 0.074-0.4 | 7-16 | 210 | 34 |
| Ø1830×7000 | 24 | 23 | ≤25 | 0.074-0.4 | 8-18 | 245 | 36 |
| Ø2100×3600 | 23 | 19 | ≤25 | 0.074-0.4 | 10-36 | 210 | 46 |
| Ø2200×4500 | 21 | 27 | ≤25 | 0.074-0.4 | 12-23 | 280 | 48.5 |
| Ø2200×6500 | 21 | 35 | ≤25 | 0.074-0.4 | 14-26 | 380 | 52.8 |
| Ø2200×7000 | 21 | 35 | ≤25 | 0.074-0.4 | 15-28 | 380 | 54 |
| Ø2200×7500 | 21 | 35 | ≤25 | 0.074-0.4 | 15-30 | 380 | 56 |
| Ø2400×4500 | 21 | 30 | ≤25 | 0.074-0.4 | 18-45 | 320 | 65 |
| Ø2400×8000 | 20 | 36 | ≤25 | 0.074-0.4 | 20-48 | 410 | 81 |
| Ø2700×3600 | 21 | 39 | ≤25 | 0.074-0.4 | 19-75 | 400 | 83 |
| Ø2700×4000 | 20 | 40 | ≤25 | 0.074-0.4 | 20-78 | 400 | 85 |
| Ø2700×4500 | 20 | 48 | ≤25 | 0.074-0.4 | 22-85 | 430 | 89 |
| Ø3200×4500 | 18 | 65 | ≤25 | 0.074-0.4 | 29-140 | 800 | 137 |
| Ø3200×5400 | 18 | 81.6 | ≤25 | 0.074-0.4 | 30-180 | 800-1000 | 146 |
| Ø3600×4500 | 17 | 88 | ≤25 | 0.074-0.4 | 35-210 | 1000 | 190 |
| Ø3600×6000 | 17 | 117 | ≤25 | 0.074-0.4 | 38-240 | 1250-1500 | 220 |
| Ø3600×8500 | 17 | 144 | ≤25 | 0.074-0.4 | 45-260 | 1800 | 260 |
|
|
Gold Ball Mill Grinding Ore Grinder Gold Mining Equipment Ball Mill for Limestone Basalt Images
|
